Bay Star 3618 | Motor Home Class A

Sleeps	5
Slides	3
Length	36 ft 11 in
Ext Width	8 ft 6 in
Ext Height	12 ft 10 in
Int Height	6 ft 8 in
Interior Color	Burma, Rimini, Townsend
Exterior Color	Dudley, Lenland, Somerset
Hitch Weight	5000 lbs
GVWR	26000 lbs
Dry Weight	22700 lbs
Cargo Capacity	3300 lbs
Fresh Water Capacity	75 gals
Grey Water Capacity	60 gals
Black Water Capacity	40 gals
Furnace BTU	35000 btu
Generator	5.5 kW Cummins Onan
Fuel Type	Gas
Engine	7.3L V8
Chassis	Ford F-53
Horsepower	350 hp
Fuel Capacity	80 gals
Wheelbase	242 in
Available Beds	King
Torque	468 ft-lb
Refrigerator Type	Norcold
Refrigerator Size	10 cu ft
Convection Cooking	Yes
Cooktop Burners	3
Shower Size	40" x 30"
Number of Awnings	1
Axle Weight Front	9000 lbs
Axle Weight Rear	17500 lbs
LP Tank Capacity	25 gals
Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric
AC BTU	27000 btu
TV Info	LR Samsung LED, BR Samsung LED
Awning Info	Carefree Travel'r Power Side Awning w/Strip Lighting
Gross Combined Weight	30000 lbs
Shower Type	Standard
Electrical Service	50 amp

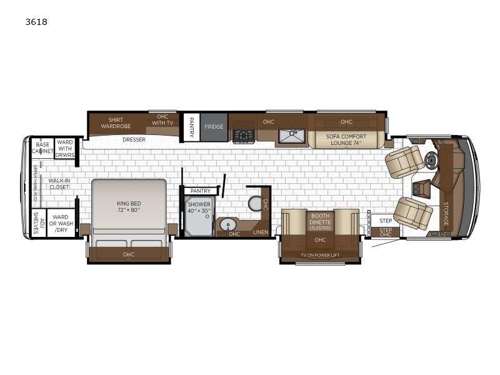

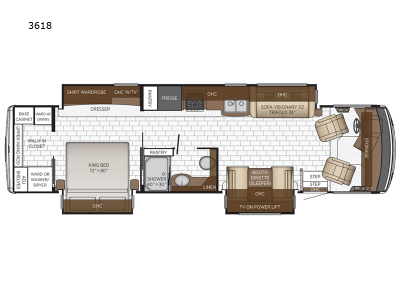

Newmar Bay Star Class A gas motorhome 3618 highlights:

• Rear Private Bedroom
• Shower Skylight
• Booth Dinette
• Swivel Seats
• Full Bathroom



You will feel right at home in this motorhome with the rear private bedroom! Inside the bedroom you will find a king bed slide across from a dresser below a shirt wardrobe and a large walk-in closet with plenty of storage spaces, plus an area prepped to add an optional washer and dryer. The full wall slide provides added space, along with the two other slides throughout. You can easily prepare meals on the recessed three burner cooktop, or use the stainless steel convection microwave, and the pantry will be perfect for dry goods or snacks. This model includes a 74" visionary V2 tri-fold sofa and a comfy booth dinette (sleeper) for seating and sleeping space, plus there is a Samsung LED TV in the living room and bedroom so you can watch your favorite shows. You'll find storage space up front, plenty of overhead compartments, plus lit basement storage.



Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 350 HP and 468 lb./ft. of torque and heavy duty sway bars. The exterior is sure to turn heads with its full-paint Masterpiece Finish, and you'll have three interior décor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl tile flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered, such as the optional exterior entertainment center!
