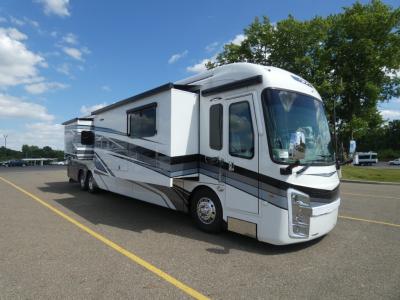

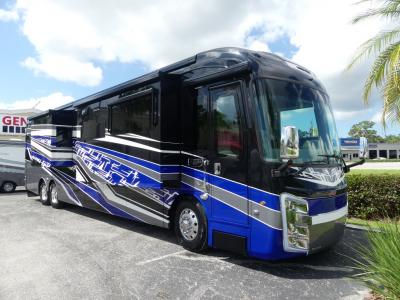

Entegra Coach Aspire Motor Home Class A - Diesels

Standard Features (2024)

Chassis

• Spartan® K2 raised-rail chassis
• Cummins® L9 turbocharged 450 HP engine with 1,250-lb. ft. torque at 1,400 RPM
• Allison® 3,000 MH 6-speed transmission
• Side-mounted, parallel-airflow radiator
• 170-amp alternator
• 1,000-watt engine block heater
• Three-stage engine brake
• Reyco Granning front axle with independent front suspension - 17,000 lb. rating
• Independent front air suspension (IFS)
• Meritor rear axle - 20,000 lb. rating (Dana® rear axle- 24,000 lb. rating on 40P)
• Tag axle with air dump - 12,000 lb. rating (N/A 40P)
• ABS disc brakes on front axle, drum brakes on drive and tag axle (ABS disc brakes on front and rear axle on 40P)
• 4.88 rear axle ratio (4.78 on 40P)
• Michelin® X Coach Z tires (315/80R22.5 in front, 295/80R22.5 in rear)
• Bilstein® 46mm shocks
• Tire pressure monitoring system (TPMS) with temperature monitoring
• Equalizer™ hydraulic automatic coach leveling
• Valid Truline air leveling system with auxiliary air compressor
• Remote air connection
• (2) 12V chassis batteries
• 150-gal. fuel tank with dual fills (100 gal. on 40P)
• 15-gal. DEF tank with dual fills (single fill on 40P, 44R)
• Spartan® Safehaul tow vehicle air brake system
• 15,000-lb. hitch with 7-pin plug (10,000-lb. hitch on 40P)

Construction

• 4 in. arched aluminum trusses filled with batt insulation and reflective Flexfoil® topped with 3/8 in. plywood decking then one-piece fiberglass
• 2-1/2 in. exterior walls with Aluma-Tru™ welded tubular aluminum studs on 16 in. centers or less, filled with batt and Flexfoil® insulation, then covered with high-gloss gelcoat fiberglass (R-16)
• 2 in. x 4 in. wood trusses on 16 in. centers or less filled with batt and Flexfoil® insulation then topped with 3/4 in. 7-ply plywood decking (R-33)
• X-Bridge™ bracing welded into chassis frame
• Insulated front and rear caps (R-24)
• Entegra-exclusive Relia-Torque flush-mounted 12V slideout system
• Sikkens custom full-body paint

Heat, AC, Water and Power

• Aqua-Hot heated basement storage
• Onan® 10,000-watt diesel generator, with automatic start, on slide-out tray
• 3,000-watt pure sine wave inverter
• (2) L16 AGM batteries (6V/390 amp hrs. ea.)
• 50-amp power cord on electric powered reel
• Smart automatic transfer switch with surge protection
• (3) 15,000-BTU A/C units with heat pumps and condensation drain system
• Aqua-Hot® 400D hydronic water and heating system with in-floor heat throughout
• Sani-Con® Macerator holding tank dump system with manual gate valves and manual backup
• Black tank flush; Grey tank flush
• Tilt tank dump
• City and tank water filtration system
• Hot and Cold water hook-up in front cap area with 30 ft. quick-disconnect hose
• Water hose with electric reel

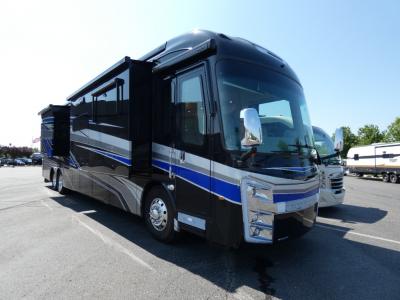

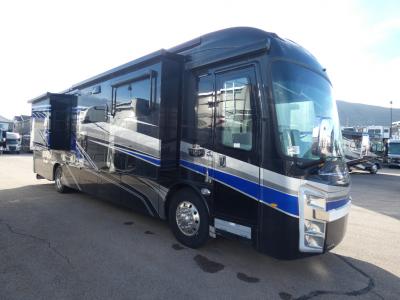

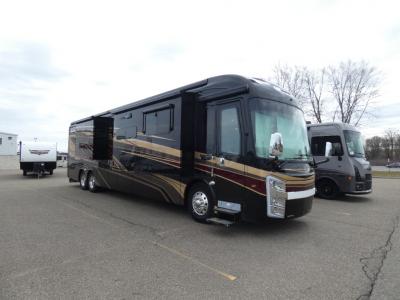

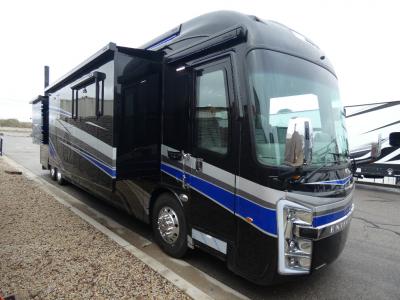

Exterior

• (2) 200W solar panels
• Power rear engine door with manual override
• Dual roof-mounted Girard® Vision dual-pitched patio awnings with LED lights
• Girard® power entrance door awning with LED lights
• Girard® Ultra slideout awnings
• Girard® window awnings
• Frameless, dual-pane, tinted, safety-glass windows
• Lit grab handle with doorbell and keypad system for keyless entry
• 43 in. Samsung® 4K UHD Smart TV with tilt, swivel, and extend adjustment; JBL® radio and speakers with USB port and receptacle
• Chrome, heated, remote-control, side-view mirrors with two-position memory settings
• Diamond Shield™ front protective film mask
• Automatic LED low beam headlights, halogen high beam headlights and fog lights
• Halogen fog lights
• Automatic Daytime running lights
• LED marker lights, turn lights, license plate light, third brake light, accent lights and docking lights
• LED accent lights under passenger slideout rooms
• Mudflap with chrome “Aspire” nameplate
• Starlink satellite internet system
• Winegard® TRAV’LER satellite dish DIRECTV® - standard with USA option
• Winegard® TRAV’LER satellite dish Shaw TV - standard with CSA option
• Winegard® Rayzar Z1 TV antenna
• Winegard® WiFiRanger™ Wi-Fi extender
• Heated exterior utility center with 5 in. LED SeeLeveL™ tank monitoring panel
• Slideout basement storage tray
• Push-button, power-unlatching baggage doors with LED indicator light
• Removable screen on entry door

Cockpit

• Bergstrom dual-zone HVAC system; Dual USB port and one 12V socket for charging
• Valid™ 15 in. digital dash with quad core graphics processor, on-board diagnostics and ability to display traditional instrument cluster, 360° camera system or GPS navigation
• Ramco 360° HD digital camera system
• Valid™ infotainment system with 15 in. touchscreen, Sygic navigation, Bluetooth®, Sirius XM™ and AM/FM tuner, integrated camera control and house mode whole-coach audio distribution
• 4.3 in. infotainment control touchscreen in passenger console
• E-Z Steer™ adjustable power steering assist
• Leather steering wheel with integrated controls for screen selection, instrument cluster navigation, media source selection, cruise, wipers and Bluetooth® phone functionality
• Manual tilt and telescoping steering column
• JBL® premium audio 5-speaker sound system with amplifier, speakers and DVC subwoofer
• All-in-one automotive antenna for AM/FM/Sirius/GPS dash radio system
• Ultra-Vision® one-piece wrap-around tinted windshield; Rain-sensing windshield wipers
• Leather driver and passenger seats with powered 6-way adjustment, lumbar and footrest functions
• Powered flush stepwell cover
• Powered adjustable brake and accelerator pedals
• Powered front sun visors and privacy shades

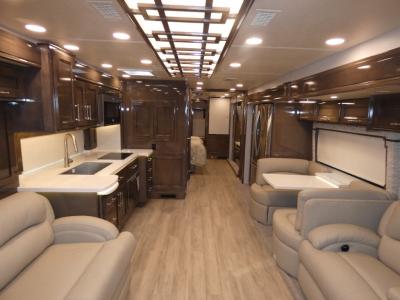

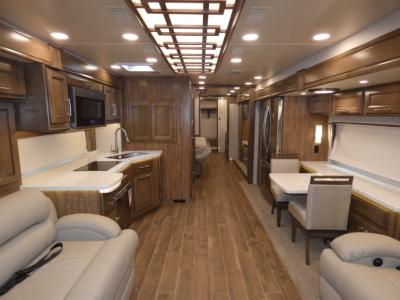

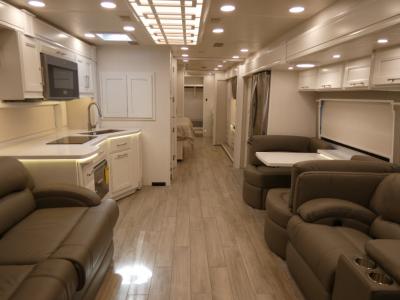

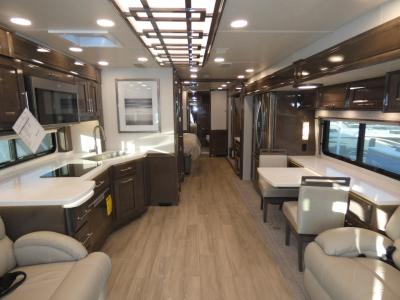

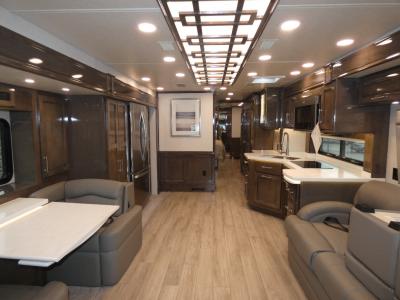

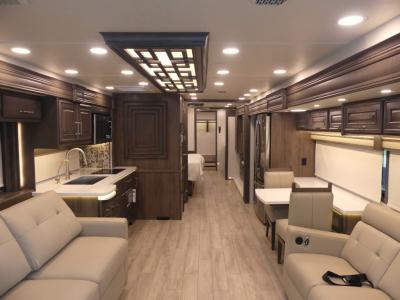

Interior

• 32" Samsung® LED 1080P Smart TV in front overhead
• Firefly multiplex system with 10” VegaTouch touchscreen for complete integration of coach controls (mobile app available)
• 50” Samsung® 4K UHD Smart TV
• Bose® sound bar with subwoofer and universal remote control
• Sony® Blu-ray™ player
• Premium leather Crown Compass furniture
• Hand-laid porcelain tiled floors
• LED interior lighting
• Decorative ceiling feature with integrated accent lighting
• Manual solar day shades and blackout night shades
• Central vacuum system
• Aire-Secure™ travel locks for all pocket doors
• Bar area with beverage chiller and rain glass upper cabinet door with LED accent lighting (44R only)
• Separate washer and dryer
• Bunks with industry-exclusive 300 lb. capacity each (44R)

Kitchen

• Window with push out lever operation and screen
• Stainless steel residential refrigerator
• Induction cooktop with matching wood cover
• 1.9-cu. ft. convection microwave oven
• Fisher & Paykel dishwasher
• Solid-surface countertops with dimmable LED accent lighting
• Stainless steel sink
• Maxxair® power vent exhaust fan with intake and touch screen control
• Large, deep drawer for waste basket with easy access trash chute (trash chute not available on 40P, 44D and 44R)
• Pantry with pull-out shelves; Slide-out storage tray(s) in overhead cabinet

Bedroom

• King-size gel memory-foam mattress
• 32" Samsung® LED 1080P Smart TV
• Bose® sound bar with universal remote control
• Sony® Blu-ray™ player
• Ceiling fan
• Nightstands with solid-surface tops
• Automatic light in rear closet

Bathroom

• Solid-surface countertops with dimmable LED accent lighting
• Integrated sink
• Textured porcelain tile shower with skylight and clear glass shower door
• Teakwood shower seat
• Fixed shower head and separate hand-held spray wand
• Aqua View SHOWERMI$ER™ water saving system
• Thetford® macerator toilet in main bath (44D, 44R, 4W) ; Thetford Aqua-Magic toilet with foot flush in mid bath (44B, 40P)
• Maxxair® power exhaust fan with intake

Safety

• Porch light and motion sensor security lights
• Carbon monoxide detector
• Smoke alarm
• Security safe

Options

• Dinette booth ILO freestanding table and chairs
• Sofa ILO power theater seating (44D, 44W only)
• Theater seating with power recline and fixed center console ILO hide-a-bed (44R only)
• 100 in. hide-a-bed sofa ILO 100 in. sofa with power recline (44B and 44Z only)
• Fireplace/entertainment center/work station ILO sofa (44D, 44W only)
• (2) additional AGM batteries (N/A 40P)
• Winegard® In-motion satellite dome ILO TRAV'LER
• Winegard TRAV'LER satellite dish- Dish Network ILO DIRECTV
• Canadian standards (includes Canadian Shaw satellite)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
